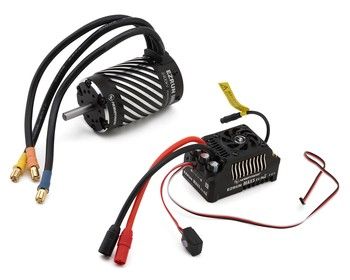

Hobbywing EZRun MAX5 HV Plus G2 Sensorless Brushless ESC & Motor Combo

The ESC features an innovative waterproof sensor interface, enhancing its overall waterproof and dustproof performance. It easily handles harsh conditions, including sediment, ice, snow, and water accumulation.

Includes

• (1) Ezrun MAX5 HV PLUS ESC
• (1) EzRun 5690SL G2 motor with your choice of KV
• User's manual
• A HOBBYWING decal

ESC Features

• Built-in ultra-powerful switch-mode BEC with support for 6V/7.4V/8.4V switching, compatible with a wide range of powerful, high-voltage servos.
• Supports turbo timing settings, delivering remarkable timing response when paired with a compatible motor.
• The built-in Bluetooth function (integrated into the switch) allows users to configure and upgrade the ESC directly via the mobile app, eliminating the need for additional devices and making the process simpler and more convenient.
• Includes a data logging function to view various performance metrics on the HW LINK app.
• Supports firmware upgrades for the ESC, ensuring access to the latest features and enhancements.

ESC Specifications

• Cont. / Peak Current: 330A / 2000A
• Motor Type: Sensored and sensorless brushless motor
• Applications: 1. 1/7 and 1/8 vehicles for Extreme Speed / 2. 1/5 Truck, Monster for Extreme Bashing
• Motor Limit: With 8S LiPo: KV< 2500 / With 12S LiPo: KV< 1600
• LiPo Cells: 6-12S LiPo
• BEC Output: 6V/7.4V/8.4Vadjustable, continuous current 8A (Switch-mode)
• Cooling Fan: Powered by the BEC voltage
• Size: 94.5(L) x 59.4(W) x 51.6(H)mm
• Weight: 450g (Included wires & connectors)
• Programming Method: iOS or Android smart phone (installed with the HW Link App)
