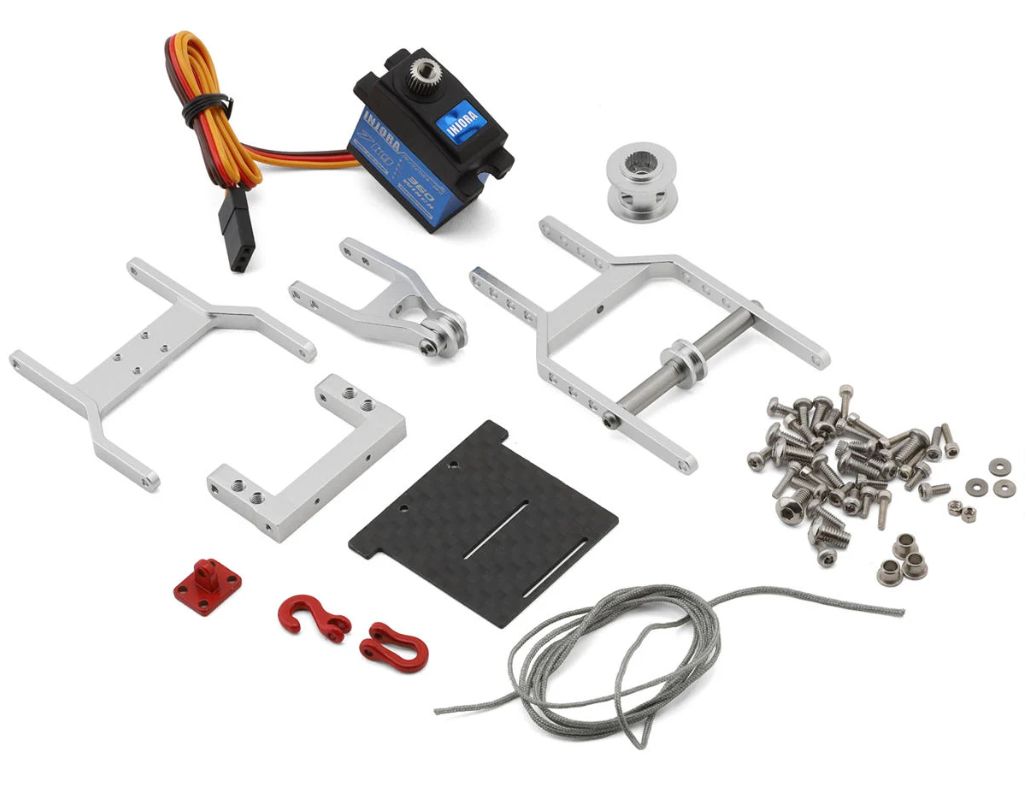

Injora Axial SCX24 1/24 Tow Truck Crane Kit & INJS2065-360 Winch Servo (Silver)

INJORA Tow Truck Crane Kit & INJS2065-360 Winch Servo for 1/24 SCX24

Note:

• Chassis: Compatible only with SCX24 stock chassis and INJORA Universal Chassis (SCX24-182)
• Body: Compatible with INJORA IR40-24 & IR60-24 bodies. For other bodies, ensure enough space for installation. Limited space after installation — adjust the electronic layout accordingly.
• Tx & Rx: Not compatible with the stock SCX24 transmitter and receiver. Your receiver must have a free channel so you can use a knob on the transmitter to control the winch servo separately.

Features:

• Powerful 7KG Torque – Strong winch servo handles tough recovery jobs with ease
• IP66 Waterproof Design – Built to perform in wet and muddy conditions
• Overload Protection – Smart current cutoff prevents damage under heavy load
• CNC Aluminum Construction – Precision machined crane offers durability and premium scale detail
• Red Tow Hook Included – Adds functionality and a bold visual touch
• Chassis Compatibility – Fits SCX24 stock chassis and INJORA universal chassis
• Body Compatibility – Perfect fit for INJORA IR40-24 & IR60-24 hard bodies
• Enhanced Visual Appeal – Instantly boosts your rig's realism and trail presence

Winch Servo Specifications:

• Part Number: INJS2065-360
• Spline: Φ5.9 25T
• Dead Band: 2μs
• Neutral Position: 1500μs/330hz
• Motor: Core Motor
• Voltage Range: 4.8V-8.4V
• 500-2500μs Angle: 360 Continuous Rotation
• Operating Speed (6.0V): 116 rpm
• Operating Speed (8.4V): 163 rpm
• Stall Torque(6.0V): 6.0 kg.cm
• Stall Torque(8.4V): 7.0 kg.cm
• Dimensions: 23*13*25.8mm
• Weight: 20g
• Connector Wire Length: JR 300mm
• Bearing: 1BB

Crane Kit Specifications:

• Part Number: SCX24-194
• Material: Aluminum
• Color: Black, Silver
• Weight: 23g
• Winch Spool: 25T
• Rope Length: Approx. 63cm
