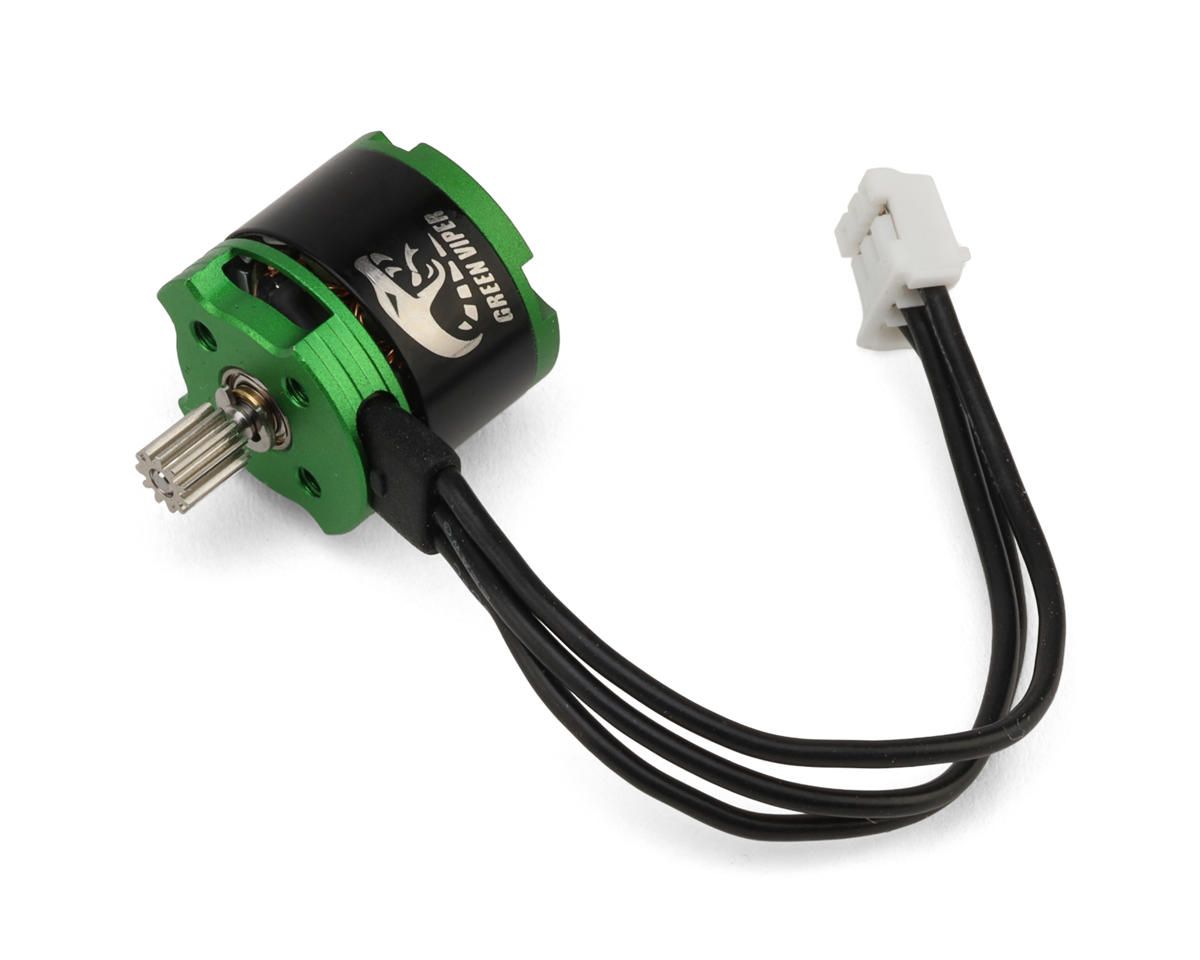

Injora Axial SCX30 Green Viper 1616 Brushless Outrunner Motor (4800kV)

INJORA Green Viper 1616 Brushless Motor 4800KV for 1/30 SCX30

Note:

• Not compatible with the stock SCX30 transmitter and ESC.
• Compatible with the INJORA MBL32 or OR30 ESC. A transmitter and receiver with a CH2 port are required for use with the MBL32 or OR30 ESC.
• Please use a 2S battery only.

Features:

• Delivers smooth and linear control at low speeds, with powerful and aggressive performance at high speeds
• Runs quieter than brushed systems, with reduced motor noise
• 4800KV brushless motor delivers higher speed than the stock SCX30 88T brushed and INJORA 1621 brushless motors
• More compact than the INJORA 1621 brushless motor for easier installation in tight spaces
• Includes a protective sleeve at the wire outlet for enhanced durability

Specifications:

• Model Number: 1616
• Motor Type: Sensorless Brushless Outrunner
• Waterproof: Yes
• Operating Voltage: 7.4V (2S LiPo)
• RPM/Volt: 4800KV
• Motor Slots: 9
• Motor Poles: 12
• No-Load Current (7.4V): 0.8A
• Max Current: 10A
  Motor Connectors: PH2.0 3-pin
• Dimensions: Φ15.5×15.5mm
• Motor Output Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 11T
• Lead Length: 65mm
• Weight: 9.7g

Package List:

1 × 1616 Brushless Motor
